Liquid carbon dioxide
-
Physical and Chemical Properties：
PARAMETER
VALUE
UNITS
Physical state (gas, liquid, solid)
Cryogenic liquid
Vapor pressure at 70oF
856
psia
Vapor density 32oF, 1 atm
Not available
Evaporation point
Not available
Boiling point (CO2 Sublimes)
-109.3 (-78.5)
oF (oC)
Freezing point
-69.8 (-56.6)
oF (oC)
PH
Not available
Spetification：
industrial grade Purity Not less than 99%( Mol/Mol) H2O Not more than 0.4* 10-2 (μMol/Mol)
Unbound water
Not detectable Smell
Tasteless Oil
Not detectable food grade
Total volatile Hydrocarbon
≦0.01
Purity
99.995
Benzene
≦0.003
H2O
6.0
Acetaldehyde
≦0.01
Oil
≦0.5
Total sulfur
≦0.005
Oxygen
3.4
Sulfide dioxide
≦0.005
Odour、taste&facade
/
Carbon Monoxide
≦2.0
Smell
/
Nitric oxide & nitrogen diode
≦1.0
Non-volatile residue
≦0.5
Super pure 6N Purity
99.9999
O2 <1.0PPMV
H2O <1.0PPMV
N2
<4.0PPMV THC
<0.5PPMV S
<0.1PPMV H2 <0.5PPMV Ar <0.5PPMV CO <0.5PPMV Transportation reference：

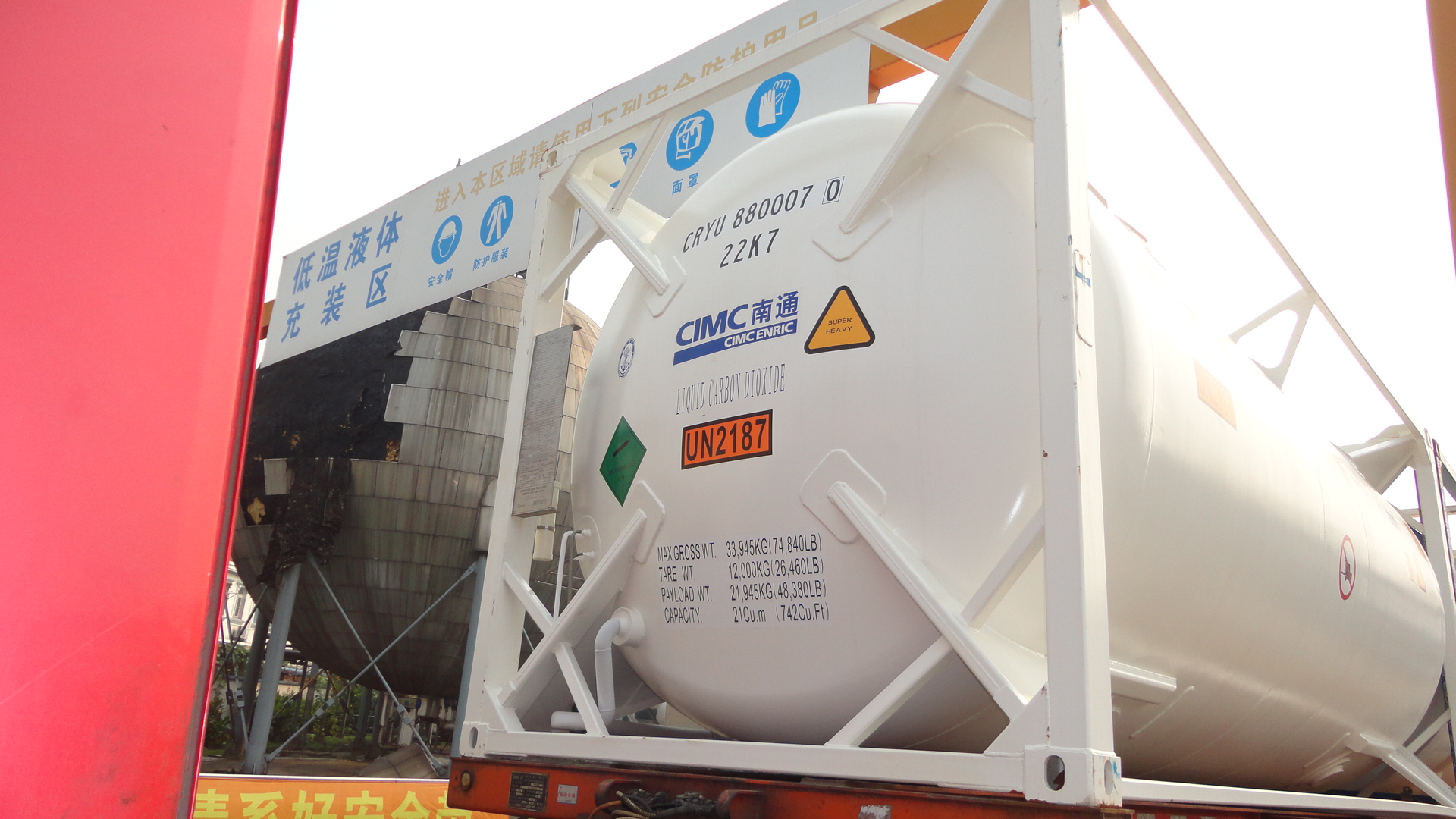

ISO TYPE
T75
WORKING PRESSURE
18-24BAR
TARE WEIGHT
7750-12000KG
WATER CAPACIT
20100-21700L
LOADING WEIGHT
18000-21500KG
TOTAL WEIGHT
28000-33000KG
